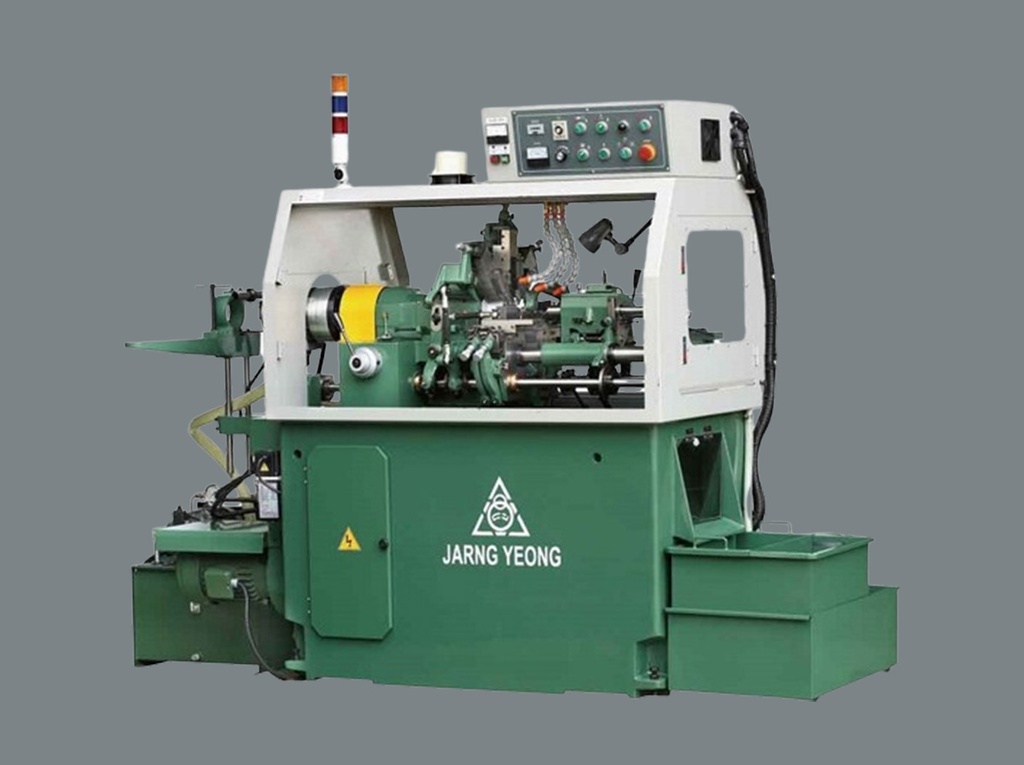

Auto Lathe JY-1525/2025
Specification
| MODEL |
Unit | JY-32H |
| Number of tool | pcs | 5 |
| Number of tail-shaft | pcs | 2 |
| Max. diameter of processing | mm | Ø32 |
| Max. length of processing for tool No.1 | mm | 75 |
| Max. diameter of drilling | mm | Ø20 |
| Max. diameter of tapping | free cutting steel | M20 |
| Max. diameter of tapping | free cutting brass | M30 |
| Spindle rotation speed | rpm | 50~3000 |
| The conversion of spindle rotary speed | step | variable speed |
| Cam shaft speed | rpm | variable speed |
| The conversion of cam rotary speed | step | variable speed |
| Main-spindle motor | HP | 5 |
| Cam shaft motor | HP | 1 |
| Coolant pump for spindle | HP | 1/4 |
| Approx. machine net weight | kgs | 1450 |
| Approx. machine size(L×W×H) | mm | 2100×1000×1800 |
All specifications, dimensions and design characteristics shown in this website are subject to change without notice.
Reference picture
Standard Accessory 請客戶提供分類
YB20 Collet
Gang type tool plate
Tool holder for inner hole (IDØ20)
Tool holder bush
Lower tool holder
Twin tool holder
Lighting device
Tools and tool box
Base leveling block
Auto lubrication system
No-material alarm indicating lamp
chip basket tank
Belt break detection device of spindle
Finished-parts collecting device
Optional Accessory 請客戶提供分類
YB20 Collet
Gang type tool plate
Tool holder for inner hole (IDØ20)
Tool holder bush
Lower tool holder
Twin tool holder
Lighting device
Tools and tool box
Base leveling block
Auto lubrication system
No-material alarm indicating lamp
chip basket tank
Belt break detection device of spindle
Finished-parts collecting device
All specifications, dimensions and design characteristics shown in this website are subject to change without notice.
Accessory
| MODEL | Standard accessories | Optional accessories | N/A |
| Lighting device 12V/6W | ● | ||
| Machine adjust cams | | ● | |
| Tools & tool box | ● | ||
| Dies holder φ38、φ50 | ● | ||
| Sound reduce feeding device | ● | ||
| Rotary hydraulic cylinder | ● | ||
| Cooling tank 60L | ● | ||
| Chip loading bucket 40L | ● | ||
| Hydraulic unit with air cooling device | ● | ||
| Parts collect device and collect box | ● | ||
| No material auto stop device | ● | ||
| Automatic lubrication system | ● | ||
| Fully enclosed Acrylic splash guard | ● | ||
| Manual device for cam forward & backward movement | ● | ||
| Manual bar feeding device | ● | ||
| Cooling pump 1/4 HP | ● | ||
| Thread milling device/Polygon device(to be suitable for free cutting steel & brass) | ● | ||
| CE specifications | ● | ||
| Automatic bar feeder | ● |
