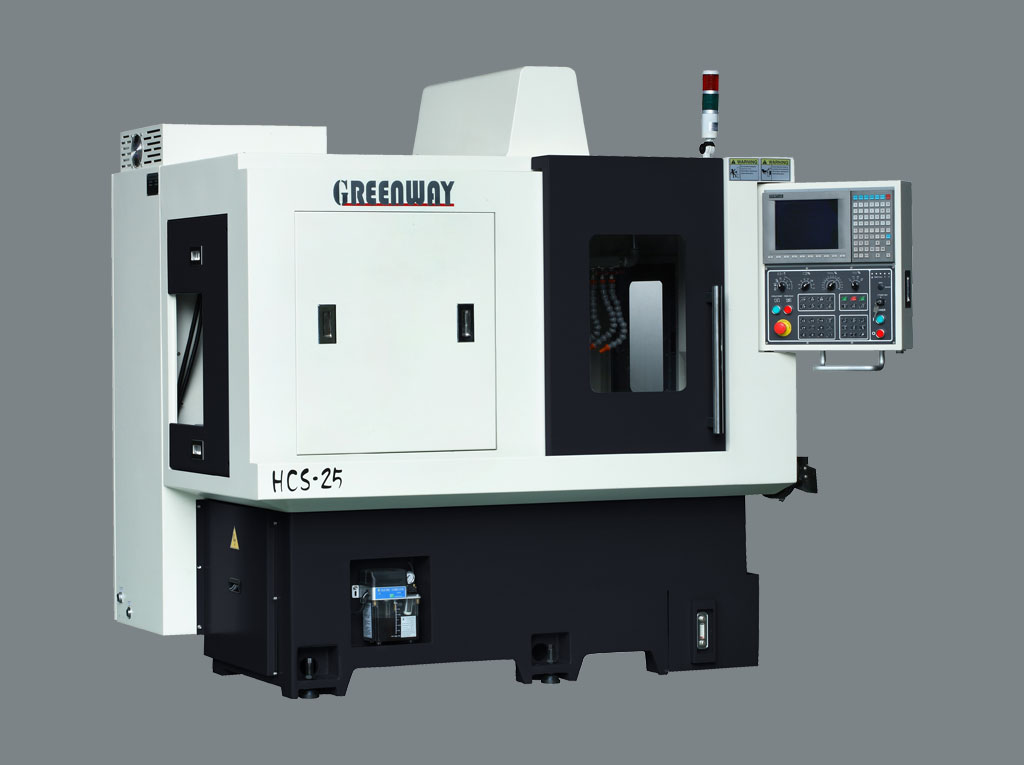

HCS-25 Swiss type CNC lathe (Single spindle)

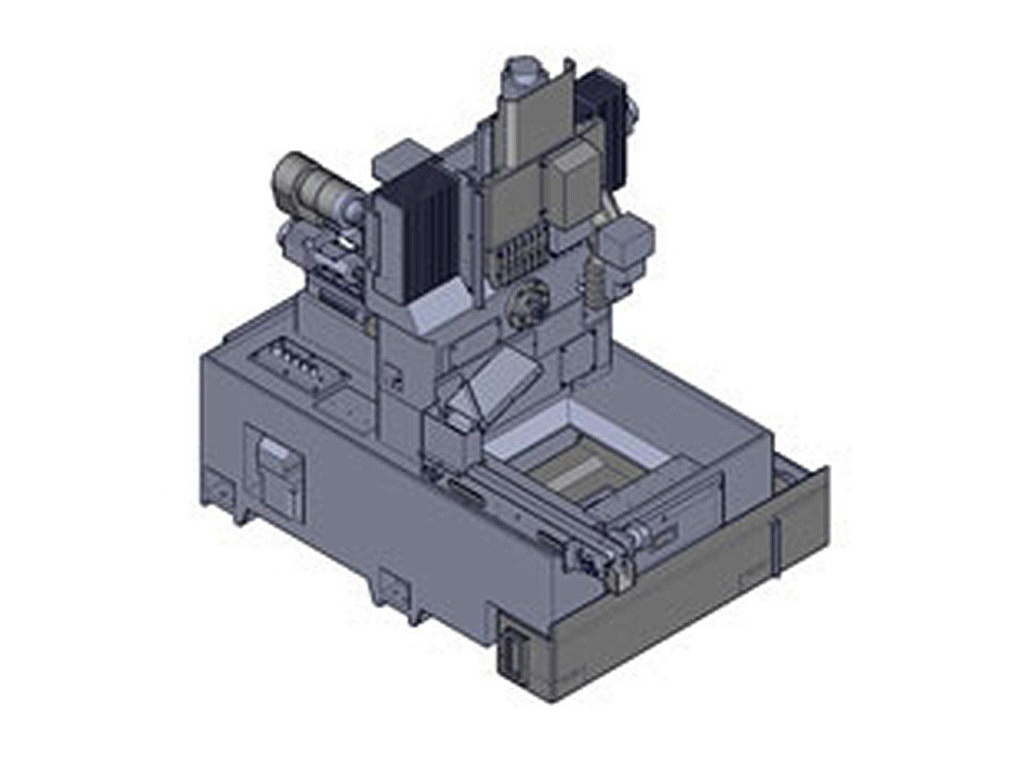

High rigidity body structure, machine base casting is integrally formed and high rigidity linear guide way, providing stabler, faster and higher precision.
With turning, milling, tapping and outline various machining functions, also suitable for processing long workpiece which can reduce cycle processing time and improve production efficiency.
High precision processing quality, low noiseless and low vibration.
Built-in main spindle is with C-axis function, high speed, big power, high precision and low vibration which can make surface of workpiece smoother.

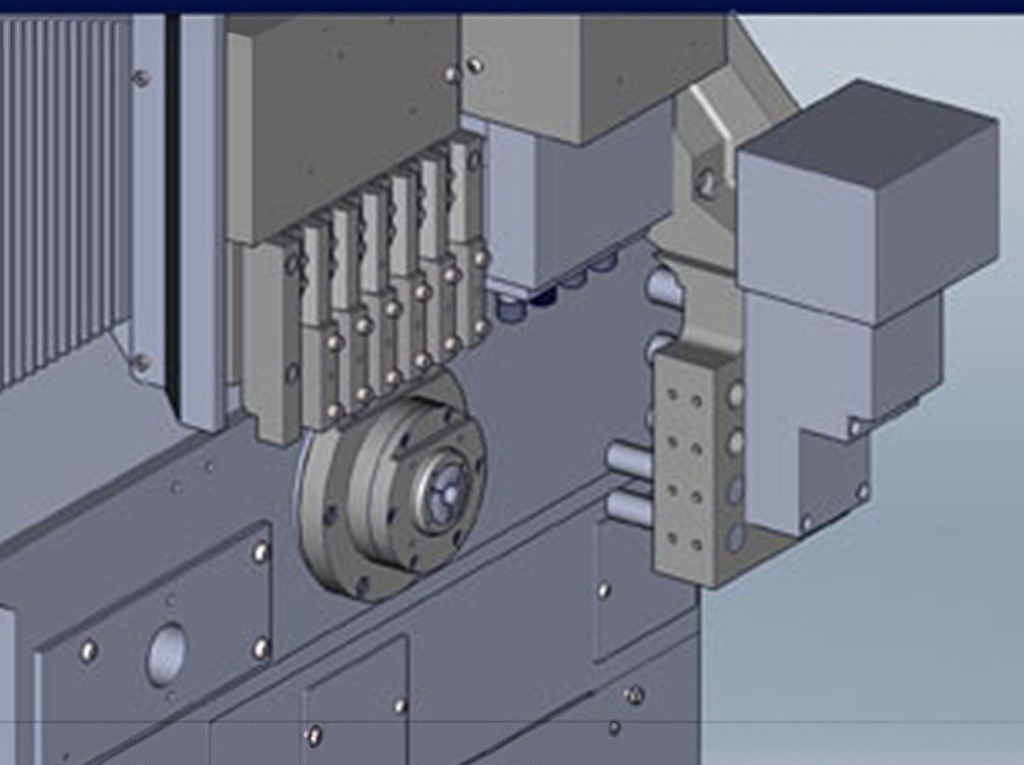

Max.18 tools and works with Synchronous rotary guide bushing unit to process long shaft workpieces.
Rotary hydraulic cylinder provides fast and stable clamping force.
It can depend on different demand of machining to with or without Synchronous rotary guide bushing unit.

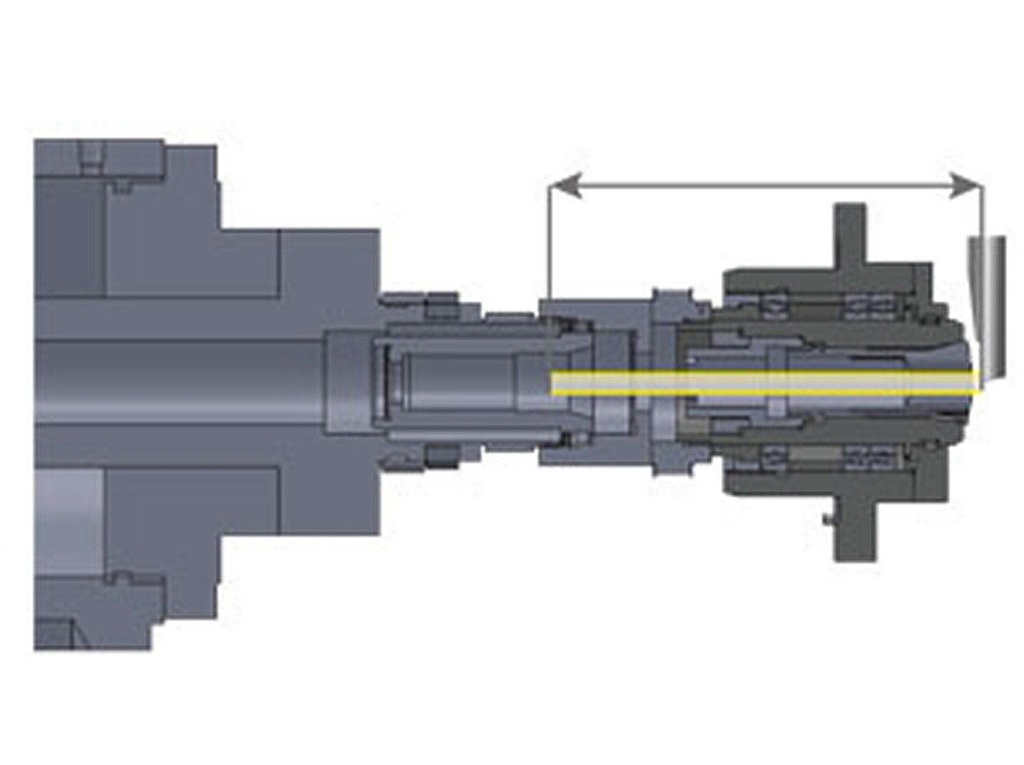

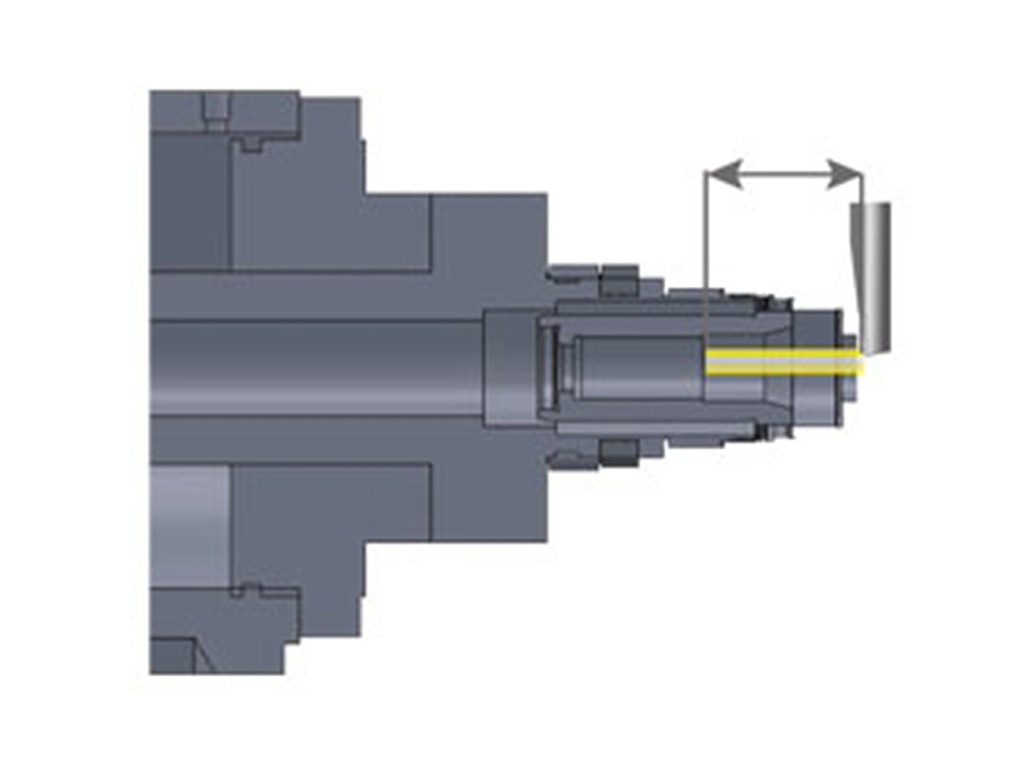

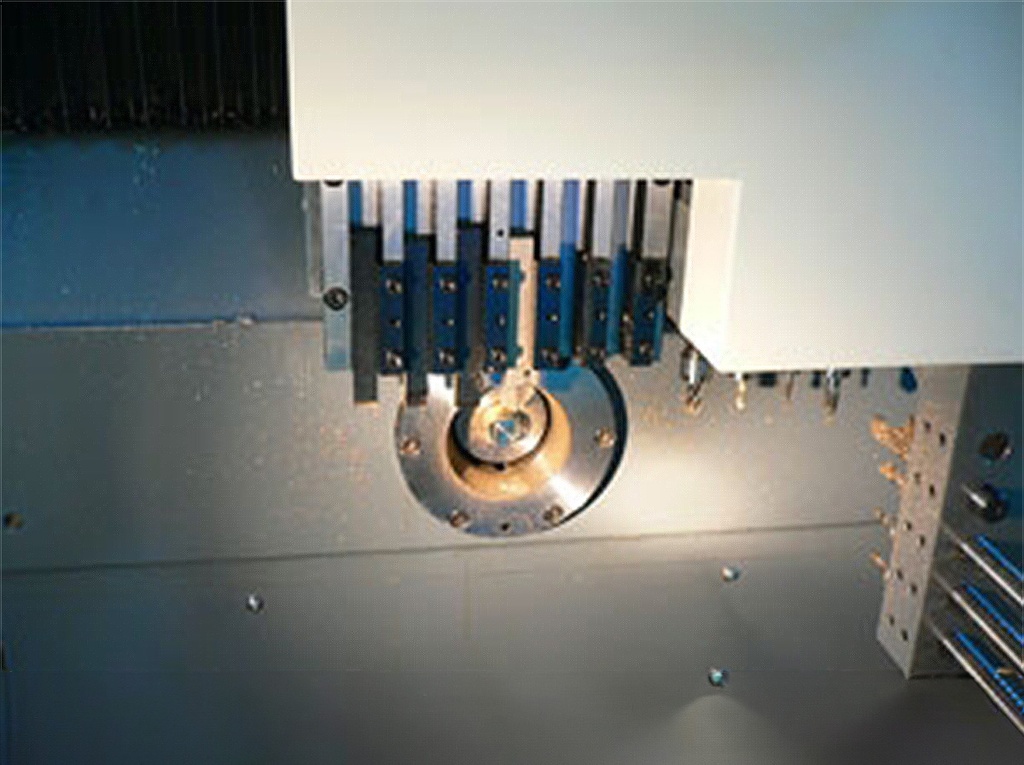

With guide bush type travel is 180mm, min. offal is 150mm. Without guide bush type travel is 310mm, min. offal is 50mm.

Video

Sliding Head

MODEL	Unit	HCS-25
Max. turning dia.	mm	25
Bore of spindle	mm	28Ø
Spindle rotating speed	rpm	6000
Spindle with built-in motor	KW	3.75 (5.5 opt)
X-axis travel	mm	150
Y-axis travel	mm	420
Z-axis travel without guide bush	mm	310
Z-axis travel with guide bush	mm	180
X/Y/Z-axis rapid travel speed	m/min	25
X/Y/Z-axis servo motor	KW	1.0
No. of O.D. turning tools	pcs	6
O.D. turning tool size	mm	16□
No. of I.D. turning tools	pcs	5
I.D. turning tool size	mm	20Ø
Collet type	--	Citizen 25#
Guide bush type	--	Citizen 25#
Servo motor of live tooling	KW	1
Max. rotating speed of live tooling	rpm	5000
No. of cross side live tooling	pcs	4
Size of f cross side live tooling	--	ER-16
No. of end side live tooling	pcs	3 (opt)
Size of end side live tooling	--	ER-20 (opt)
Coolant tank volume	L	120
Coolant pump for spindle	HP	1
Automatic lubrication system	c.c/15min	3~6
Approx. net weight	kgs	2400
Approx. machine size	mm	2100×1580×2000

All specifications, dimensions and design characteristics shown in this website are subject to change without notice.

5 position end face drilling device (IDØ20)

6 position tool plate 16口

Auto lubrication system

Base leveling block

Built-in spindle

Coolant system and chip basket tank with 1HP pump

Fixed-head type spindle block

Lighting device

Main spindle oil cooling device

Parts catcher

Parts catcher with conveyor

Side face milling device for main spindle (4-shaft,ER16)

Spindle collet and guide bush

Synchronous rotary guide bushing

Tool holder bush

Tools and tool box

Transformer

Air-Condition unit for electric box

Chip Cart

Electrical steel belt type chip conveyor

End-side live tool device (3-shaft, ER-20)

Long workpiece parts collecting box

Oil mist collector

Parts catcher with conveyor

Plug-type hand wheel

Voltage stabilizer

Spindle inner hole bush(PE)

synchronous rotary guide bushing

Spindle fixed-block

All specifications, dimensions and design characteristics shown in this website are subject to change without notice

MODEL	Standard accessories	Optional accessories	N/A
Spindle collet	●
Guide bush	●
Spindle oil cooling device	●
Synchronous rotary guide bushing block	●
5 position end face drilling device (IDØ20)	●
Lighting device	●
6 position tool holder (口16)	●
Tools and tool box	●
Parts catcher with conveyor	●
Coolant system and chip basket tank	●
Powerful coolant pump 1HP	●
Side face milling device for main spindle (4-shaft,ER16)	●
End face live tool device for main spindle (3-shaft,ER20)		●
Base leveling block	●
C-axis function with lock	●
Tool holder bush (IDØ6,8,10,12,16 / ODØ20)	●
Built-in main-spindle	●
Auto lubrication system	●
Voltage stabilizer		●
Transformer	●
Auxiliary tailstock		●
Electrical steel belt type chip conveyor		●
Long workpiece-finished parts catcher		●
Spindle guide bush (Spindle block for Fixed-head type)		●
Spindle inner-hole bush		●
Plug-type hand wheel	●
Air-Condition unit for electric box	●
Oil mist collector		●
CE specifications		●
