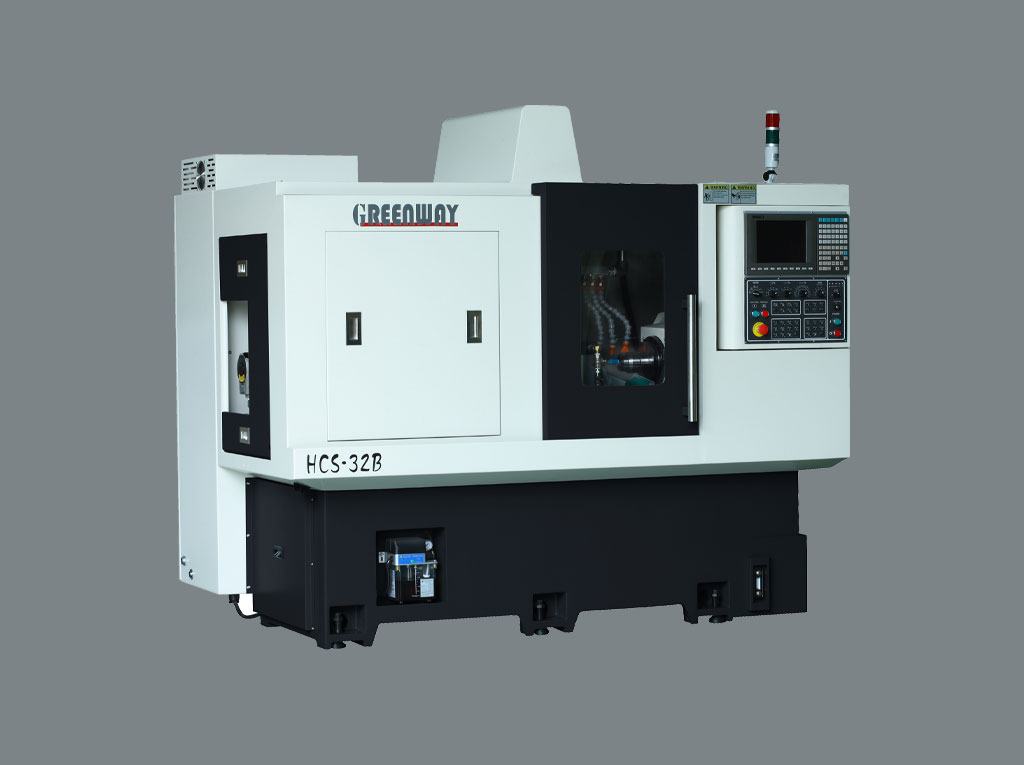

HCS-32B Swiss type CNC lathe

High rigidity body structure, machine base casting is integrally formed and high rigidity linear guide way, providing stabler, faster and higher precision
Built-in main spindle is with C-axis function, high speed, big power, high precision and low vibration which can make surface of workpiece smoother.
Optional：Synchronous rotary guide bushing device, it's suitable for processing long workpiece which can reduce cycle processing time and improve production efficiency.
Sub-spindle is with C-axis function, it can work with live tooling for end side drilling, tapping and milling.
It can depend on different demand of machining to with or without Synchronous rotary guide bushing device.
Axes：Z1/X1/Y/C1/Z2/X2/C2 + 3 sets of live tooling devices (A/B1/B2)
Max. 23 tools, can do machining on front side and back side at the same time which can save time for processing.
With guide bush type travel is 180mm, min. offal is 150mm. Without guide bush type travel is 310mm, min. offal is 50mm.

Video

Sub-Spindle / Sliding Head

MODEL	Unit	HC-32B
Max. turning dia.	mm	32
Bore of spindle	mm	33Ø
Spindle rotating speed	rpm	6000
Servo motor of built-in spindle	KW	3.75(5.5opt)
X-axis travel	mm	150
Y-axis travel	mm	420
Z-axis travel without guide bush	mm	310
Z-axis travel with guide bush	mm	180
X/Y/Z-axis rapid travel speed	m/min	25
X/Y/Z-axis servo motor	KW	1
No. of O.D. turning tools	pcs	6
O.D. turning tool size	mm	16□
No. of I.D. turning tools	pcs	5
I.D. turning tool size	mm	20Ø
Collet type	--	164E or 1536E
Guide bush type	--	Citizen 32# or Star 32# (opt)
Servo motor of live tooling	KW	2
Max. rotating speed of live tooling	rpm	5000
No. of side face live tooling	pcs	4
Size of side face live tooling	--	ER-16
No. of end face live tooling	pcs	3 (opt)
Size of end face live tooling	--	ER-20 (opt)
Cutting coolant volume	L	150
Cutting coolant pump	HP	1
Auto lubrication system	c.c/15min	3~6
SUB SPINDLE
Max. turning dia.	mm	32
Bore of sub-spindle	mm	33Ø
Sub-spindle rotating speed	rpm	6000
Servo motor of sub-spindle	KW	2.25 (3.75 opt)
X-axis travel	mm	305
Z-axis travel	mm	240
X/Z-axis rapid travel speed	mm	25
X/Z-axis servo motor	KW	1
Collet type	--	164E or 1536E
Guide bush type	--	Citizen 32# or Star 32# (opt)
Cutting coolant pump	HP	1
No. of O.D. turning tools	pcs	1
O.D. turning tool size	mm	16□
No. of I.D. turning tools	pcs	4
Size of I.D. turning tools	mm	20Ø
Servo motor of live tooling	KW	2 (opt)
Max. rotating speed of live tooling	rpm	5000 (opt)
No. of end face live tooling	pcs	4
Size of end face live tooling	mm	ER-16 (opt)
Approx. net weight	kgs	3000
Approx. machine size (LxWxH)	mm	2700×1600×2000

All specifications, dimensions and design characteristics shown in this website are subject to change without notice.

5 position end face drilling device (IDØ20)

6 position tool plate 16口

Auto lubrication system

Base leveling block

Built-in spindle

Coolant system and chip basket tank with 1HP pump

Fixed-head type spindle block

Lighting device

Main spindle oil cooling device

Parts catcher

Parts catcher with conveyor

Side face milling device for main spindle (4-shaft,ER16)

Spindle collet and guide bush

Synchronous rotary guide bushing

Tool holder bush

Tools and tool box

Transformer

Air-Condition unit for electric box

Chip Cart

Electrical steel belt type chip conveyor

End-side live tool device (3-shaft, ER-20)

Long workpiece parts collecting box

Oil mist collector

Parts catcher with conveyor

Plug-type hand wheel

Voltage stabilizer

Spindle inner hole bush(PE)

synchronous rotary guide bushing

Spindle fixed-block

All specifications, dimensions and design characteristics shown in this website are subject to change without notice

Title	Standard accessories	Optional accessories	N/A
Spindle collet	●
Guide bush		●
Main spindle oil cooling device	●
5 position end face drilling device (IDØ20)	●
Lighting device	●
6 position tool holder (口16)	●
Tools and tool box	●
Parts catcher with conveyor	●
Coolant system and chip basket tank	●
Powerful coolant pump 1HP	●
Side face milling device for main spindle (4-shaft,ER16)	●
End face live tool device for main spindle (3-shaft,ER20)		●
Base leveling block	●
C-axis function with lock	●
Tool holder bush (IDØ6,8,10,12,16 / ODØ20)	●
Built-in main spindle	●
Auto lubrication system	●
Voltage stabilizer		●
Transformer	●
Electrical steel belt type chip conveyor		●
Fixed-head type spindle block	●
Synchronous rotary guide bushing device		●
Spindle inner-hole bush		●
Plug-type hand wheel	●
Air-Condition unit for electric box	●
Oil mist collector		●
CE specifications		●
Disc brake device for sub-spindle		●
End face live tool device for sub-spindle (4-shaft,ER-16)		●
4 position end face drilling device (IDØ20) for sub-spindle	●
